The AC compressor control valve plays a critical role in the efficient operation of an automotive air conditioning (A/C) system. It is a key component that regulates the flow of refrigerant in the air conditioning compressor, ensuring the system delivers optimal cooling performance under varying conditions. Understanding the AC compressor control valve function can help vehicle owners, mechanics, and automotive enthusiasts troubleshoot A/C issues, improve efficiency, and extend the lifespan of the air conditioning system.
In this article, we will dive deep into the function of the AC compressor control valve, its importance, common problems, and how to identify when the control valve is failing.
The AC compressor control valve is an integral component found in variable displacement air conditioning compressors. Its primary function is to regulate the flow of refrigerant by controlling the compressor’s internal pressure, which directly impacts the cooling capacity of the air conditioning system. This control is crucial in maintaining consistent cabin temperatures without overworking the compressor or increasing energy consumption.

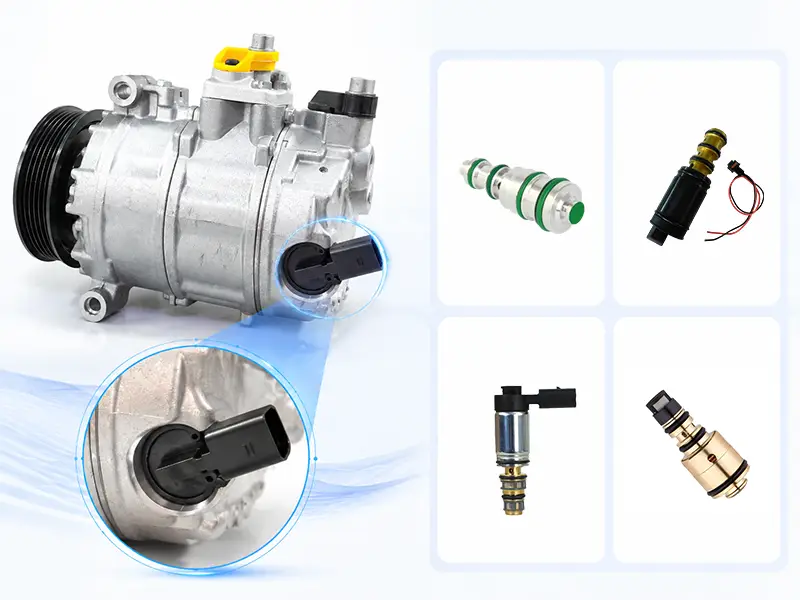

The control valve is typically installed in the back of the compressor and works by adjusting the angle of the compressor’s swashplate to vary refrigerant compression. By doing so, it ensures that the air conditioning system operates efficiently without causing strain on the engine or increasing fuel consumption.
The function of the AC compressor control valve is primarily to control the displacement of the compressor based on the cooling demand of the vehicle’s interior. The valve adjusts the pressure in the compressor’s crankcase, causing a change in the angle of the swashplate. This ultimately controls the amount of refrigerant that is compressed and sent to the condenser for cooling.
Here’s a step-by-step breakdown of how the AC compressor control valve function works:
The air conditioning system’s sensors detect the cabin temperature and compare it with the desired temperature set by the driver. If the cabin temperature is higher than the desired level, the system signals the compressor to increase cooling capacity.
The AC compressor control valve receives the signal and adjusts the internal pressure of the compressor’s crankcase. By reducing the pressure, the swashplate angle increases, allowing the compressor to displace more refrigerant, resulting in increased cooling capacity.
Conversely, when the cabin reaches the desired temperature, the control valve reduces the swashplate angle, decreasing refrigerant displacement, allowing the compressor to run at a lower capacity, thus reducing fuel consumption and compressor wear.
The control valve constantly adjusts refrigerant flow in real-time to meet cooling demands while minimizing engine load. This dynamic control optimizes air conditioning efficiency and ensures that the vehicle consumes less energy while keeping the cabin temperature comfortable.
The AC compressor control valve plays a vital role in the overall performance and efficiency of the air conditioning system. Its primary contributions include:
By adjusting the refrigerant compression based on cooling demand, the control valve reduces the load on the engine, thereby improving fuel efficiency and reducing energy consumption.
The valve ensures that the air conditioning system maintains a stable and comfortable cabin temperature without abrupt fluctuations. This enhances passenger comfort during long drives or extreme weather conditions.
Without the control valve, the compressor would constantly run at full capacity, leading to faster wear and tear. By controlling displacement, the valve prevents unnecessary strain on the compressor, extending its lifespan.
Since the compressor consumes less energy when operating efficiently, the overall carbon footprint of the vehicle is reduced. This helps in promoting eco-friendly driving.
Over time, the AC compressor control valve can develop issues that negatively impact the performance of the air conditioning system. Recognizing these signs early can prevent costly repairs and ensure continued cooling efficiency.
Here are the most common symptoms of a failing AC compressor control valve:
If the air conditioning system starts blowing warm air intermittently or takes longer to cool the cabin, the control valve may be malfunctioning. This happens when the valve fails to regulate refrigerant flow, causing uneven cooling.
A faulty control valve may keep the compressor running at full capacity even when not needed, causing excessive engine load and higher fuel consumption. This is a clear indication that the control valve is no longer regulating refrigerant flow efficiently.
When the control valve fails, the compressor may continue operating under high load, leading to excessive heat generation. This can damage the compressor and other air conditioning components if not addressed promptly.
A faulty control valve may cause irregular movements of the swashplate inside the compressor, resulting in abnormal noises such as clicking or rattling. If you notice unusual sounds, it’s advisable to inspect the compressor and control valve.
In extreme cases, a completely failed control valve may prevent the compressor from operating at all, resulting in no cooling from the air conditioning system. This usually happens when the valve is stuck in a closed or open position.
Several factors can contribute to the failure of an AC compressor control valve, including:
Using contaminated or incorrect refrigerant can cause the control valve to clog, leading to malfunction or failure. Always ensure that the refrigerant is clean and compatible with your system.
The control valve relies on electrical signals to adjust the swashplate angle. Faulty wiring, loose connections, or a damaged control module can cause the valve to stop functioning properly.
Like any other automotive component, the AC compressor control valve is subject to wear and tear over time. Continuous use without regular maintenance can lead to a failed valve.
If the compressor consistently operates under high pressure due to insufficient refrigerant or poor air circulation, it may eventually damage the control valve.
If you suspect that your AC compressor control valve is faulty, here’s what you can do:
Use an A/C system diagnostic tool to measure the refrigerant pressure and observe compressor performance. If there is irregular refrigerant flow, the control valve may be malfunctioning.
In most cases, it is more cost-effective to replace the control valve instead of the entire compressor. Ensure you purchase a high-quality AC compressor control valve compatible with your vehicle model.
After replacing the control valve, recharge the A/C system with the appropriate refrigerant (R134a or R1234yf). This ensures the system operates at optimal efficiency.
Start your vehicle and monitor the air conditioning performance. Ensure that the compressor engages correctly, and the cabin reaches the desired temperature without fluctuation.
The AC compressor control valve function is critical in maintaining optimal cooling performance, energy efficiency, and prolonged compressor lifespan in automotive air conditioning systems. Understanding how this valve works, recognizing symptoms of failure, and ensuring timely maintenance can prevent costly repairs and ensure passenger comfort in your vehicle.
If you are experiencing inconsistent cooling, increased fuel consumption, or any sign of compressor malfunction, it is highly recommended to inspect and, if necessary, replace the AC compressor control valve. Regular maintenance and professional inspections will keep your air conditioning system running smoothly and efficiently for years to come.
