ACTECmax RV AC Unit AC.132.033 – 10,000–15,000 BTU Cooling & 12,000–16,000 BTU Heating, AC 115V, R32, DC Inverter, Brushless Fan, Wholesale B2B
The ACTECmax AC.132.033 is a full DC inverter RV AC unit featuring a high-efficiency GMCC compressor, dual cooling and heating capabilities, quiet operation, and customizable options for dealers, OEMs, and B2B clients.
- High-Efficiency GMCC Compressor: Ensures reliable, long-term operation with energy-saving DC inverter technology.
- Flexible Climate Control: Supports both cooling and heating, ideal for year-round RV use.
- Dual-Way Airflow Design: Even air distribution for improved comfort inside the vehicle.
- Quiet Operation: Indoor 56–62 dB(A), outdoor 59–65 dB(A) for a low-noise travel experience.
- Customizable & OEM-Friendly: Options for indoor panel size, ceiling cutout, and color; suitable for OEM/ODM solutions.
- Bulk-Ready Packaging: Optimized for container shipment, convenient for B2B procurement.
Product Description

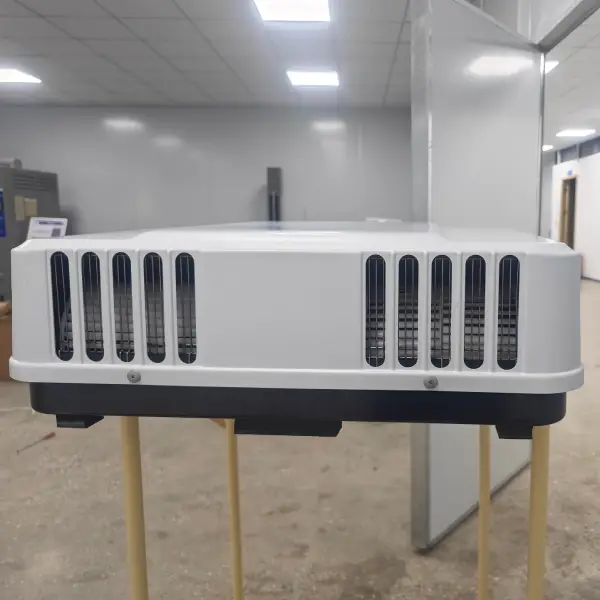

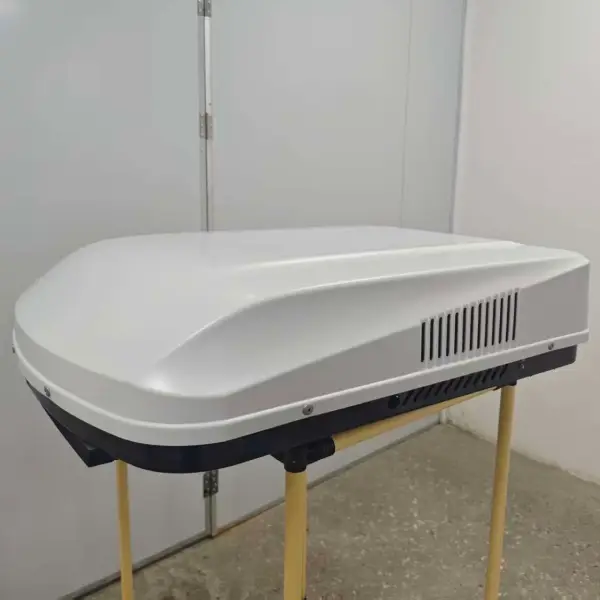

The ACTECmax AC.132.033 RV AC Unit is designed for motorhomes, camper vans, and commercial recreational vehicles, offering high-performance cooling and heating through its energy-efficient GMCC DC inverter compressor. With a rated cooling capacity of 10,000–15,000 BTU and heating capacity of 12,000–16,000 BTU, it ensures comfortable cabin temperatures in both summer and winter.
Its single duct, dual-way airflow design delivers even and rapid air distribution, while the brushless DC fan provides quiet, energy-efficient operation. The RV AC unit is compatible with R32 refrigerant, supports remote control operation, and features customizable ABS housing with optional color matching to vehicle interiors.
The rv ac unit AC.132.033 also offers flexible installation options, supporting ceiling openings of 400 × 400 mm, with a ceiling thickness range of 26–100 mm, and comes with modular indoor and rooftop panels for ease of maintenance.
For B2B clients, OEMs, and RV dealers, this rv ac unit is ideal for bulk procurement, with clear packaging and shipping quantities for 20GP, 40GP, and 40HQ containers. Its customizable and turnkey design ensures smooth integration into a wide range of RV models.
Specification Table
| Specification | Details |
|---|---|
| Model | AC.132.033 RV AC Unit |
| Type | Full DC Inverter |
| Power Supply | AC 115V |
| Rated Cooling Capacity | 10,000–15,000 BTU |
| Rated Heating Capacity | 12,000–16,000 BTU |
| Power Consumption (Cooling/Heating) | 1000–1650 W / 1000–1400 W |
| Current (Cooling/Heating) | 8.7–14.0 A / 8.7–12.2 A |
| EER / COP | 1.8–2.0 / 2.3–2.5 |
| Refrigerant | R32 (16/11.3 oz) |
| Compressor | GMCC Horizontal type, high-efficiency, reliable |
| Airflow (High Speed) | 650 m³/h (28,251 ft³/h) |
| Indoor Noise Level (L/M/H) | 56 / 59 / 62 dB(A) |
| Outdoor Noise Level (L/M/H) | 59 / 62 / 65 dB(A) |
| Net Weight (Rooftop) | 44 kg |
| Gross Weight (Rooftop) | 46 kg |
| Net Dimensions (Rooftop) | 1069 × 769 × 240 mm |
| Packing Dimensions (Rooftop) | 1137 × 844 × 488 mm |
| Ceiling Opening Dimension | 400 × 400 mm (362 × 362 mm optional) |
| Controller | Remote Controller (optional) |
| Fan Type | Brushless DC Motor |
| Evaporator | Finned Evaporator |
| Condenser | Finned Condenser |
| Housing Material | ABS |
| Color | Standard White, customizable |
| Wholesale Packing (Units per Container) | 20GP: 72 units40GP: 168 units40HQ: 168 units |
Why Choose ACTECmax AC.132.033 RV AC Unit
ACTECmax AC.132.033 – Energy-Efficient Year-Round RV Comfort with Customizable Design, Quiet Operation, and Complete B2B Solutions with One-Year Warranty.
Applications
The ACTECmax AC.132.033 RV AC Unit is specifically designed to provide reliable cooling and heating for recreational vehicles (RVs), ensuring year-round comfort during travel or camping.
Key Scenarios:
- Motorhomes & RVs
- Maintains a comfortable indoor temperature range (16–31°C) during summer and winter.
- Ideal for full-time or seasonal RV living, providing consistent climate control.
- Camper Vans & Travel Trailers
- Fits compact or mid-sized RV interiors with its modular rooftop design.
- Ensures quiet, energy-efficient operation for overnight stays or long trips.
- Family or Group RV Travel
- Supports multiple occupants with high airflow (28,251 ft³/h) for uniform cooling and heating.
- Provides easy-to-use control via remote or LCD panel for convenience on the road.
- RV Parks or Campgrounds
- Compatible with standard AC 115V supply in RV park hookups.
- Supports plug-and-play installation, ideal for frequent travelers or rental fleets.
Partner with Anchor Group
Partnering with Anchor Group gives you access to ACTECmax RV AC Units, a premium line of rooftop air conditioners designed specifically for recreational vehicles. With 24 years of global experience, Anchor Group delivers one-stop, customizable solutions that meet the needs of OEMs, dealers, and B2B clients worldwide.
Why Partner with Anchor Group?
- High-Quality Products: Equipped with GMCC or Panasonic compressors, energy-efficient DC inverter technology, and durable ABS housings.
- Tailored for RVs: Designed for quiet operation, even airflow, and year-round comfort, ensuring your customers enjoy reliable performance wherever they travel.
- B2B & Bulk Advantage: Clear container packing plan (20GP: 72 units, 40GP: 168 units, 40HQ: 168 units) for efficient procurement and logistics.
- Local Support & Service: From packaging design to installation guidance, Anchor Group provides localized support for smooth operations.
- One-Year Warranty & Maintenance: Confidence in every unit, backed by professional technical support and standardized spare parts.
