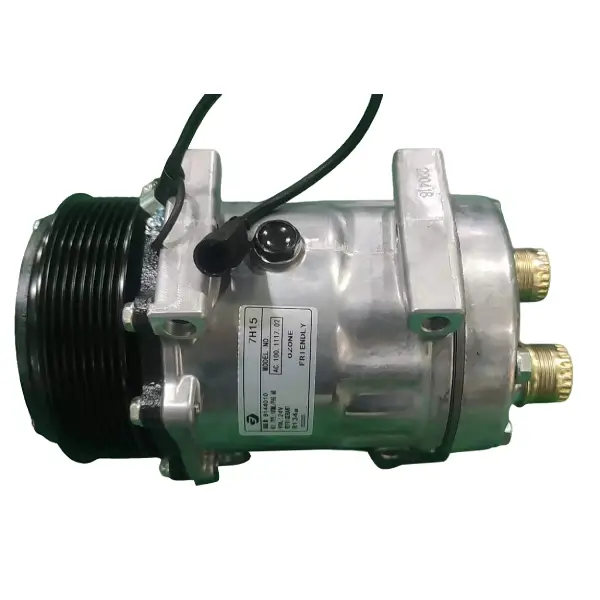

ACTECmax 7H15 AC.100.1117.02 AC Compressor with 119MM/8PK/24V Clutch
ACTECmax 7H15 AC Compressor – durable, high-efficiency R134a cooling, 119MM/8PK/24V clutch, OE 8144 fit for automotive B2B
- High Efficiency: Equipped with an advanced 7H15 design, this AC compressor delivers superior cooling performance using R134a refrigerant, ensuring reliable operation in demanding automotive environments.
- Compact Design: At 119mm clutch size and lightweight construction, the compressor fits seamlessly into tight engine spaces, maintaining optimal airflow and reducing system strain.
- Durable Construction: Built with precision engineering and the 8PK belt drive system, this AC compressor offers long-lasting durability and consistent performance under continuous use.
- OE-Grade Compatibility: Designed to match OE NO. 8144 specifications, it ensures perfect fitment and reliability when replacing original equipment, maintaining factory-standard climate control efficiency.
Products Categories
Get A Free Quote
Product Description
This car AC compressor unit follows the Sanden 7H15 architecture—7-cylinder design with approximately 150cc per revolution displacement. Engineered for R134a refrigerant systems, it features a 119mm electromagnetic clutch assembly and an 8PK multi-rib pulley configuration. The reference OE number 8144 indicates compatibility with original equipment dimensions and mounting points.
Design & Construction
The 7H15 platform employs a swashplate mechanism that has been widely adopted in light vehicle applications for over two decades. The clutch system engages via a standard 12V automotive electrical connection, with a typical air gap of 0.3-0.6mm that requires periodic inspection. The 8PK belt interface aligns with most contemporary serpentine belt layouts found in compact to mid-size vehicles.
Applications
Primarily utilized as an aftermarket replacement component for passenger cars and light commercial vehicles originally equipped with similar displacement compressors. The 119mm clutch diameter and standard mounting footprint allow for direct installation in many platforms, though specific vehicle fitment should always be verified against manufacturer parts catalogs.
Operational Notes: This compressor supports standard R134a operating pressures. Performance correlates directly with condenser airflow, expansion valve calibration, and overall system integrity. It is not compatible with R1234yf refrigerant without system modification.
Technical Information
| Parameter | Specification |
|---|---|
| Compressor Type | 7H15 |
| Clutch | 119MM / 8PK / 24V |
| Brand | ACTECmax |
| OE Number | 8144 |
| Ports | 2-1-14UNF MD COVER |
| Refrigerant | R134a |
Maximize Value with ACTECmax 7H15 AC Compressor
Anchor Group provides comprehensive B2B solutions for the ACTECmax AC.100.1117.02 AC Compressor. We offer OEM/ODM services, multilingual support, detailed installation guidance, and one-stop support to streamline your supply chain and enhance product integration. Designed for universal automotive applications with OE NO. 8144 compatibility and R134a refrigerant, this compressor ensures reliable, high-efficiency cooling while minimizing maintenance requirements.
